T-DRILL HFT-2000 SS Collaring Unit for Stainless Steel

T-DRILL HFT-2000 SS Collaring Unit - 17–54mm

Portable collaring unit for stainless steel manifold production

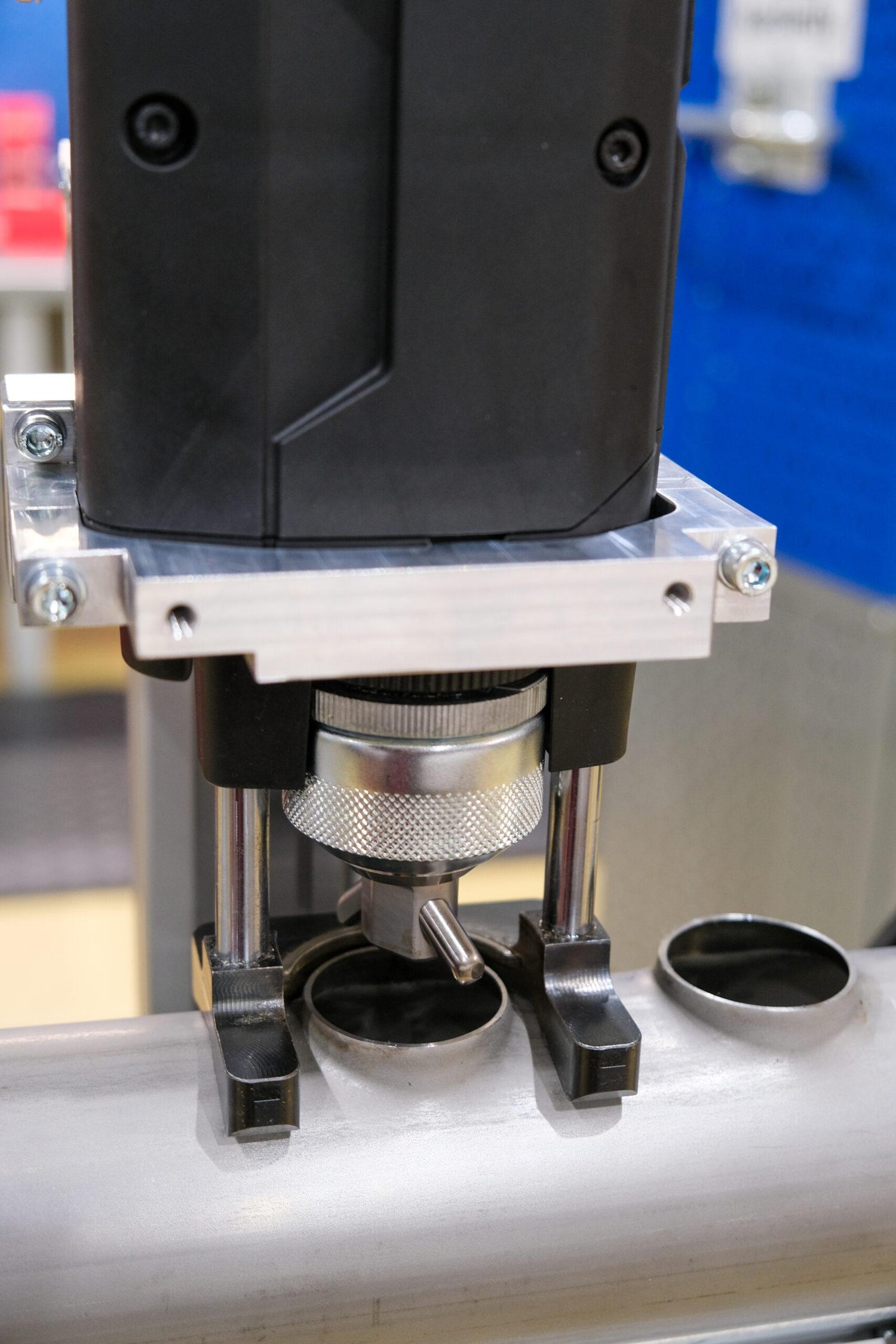

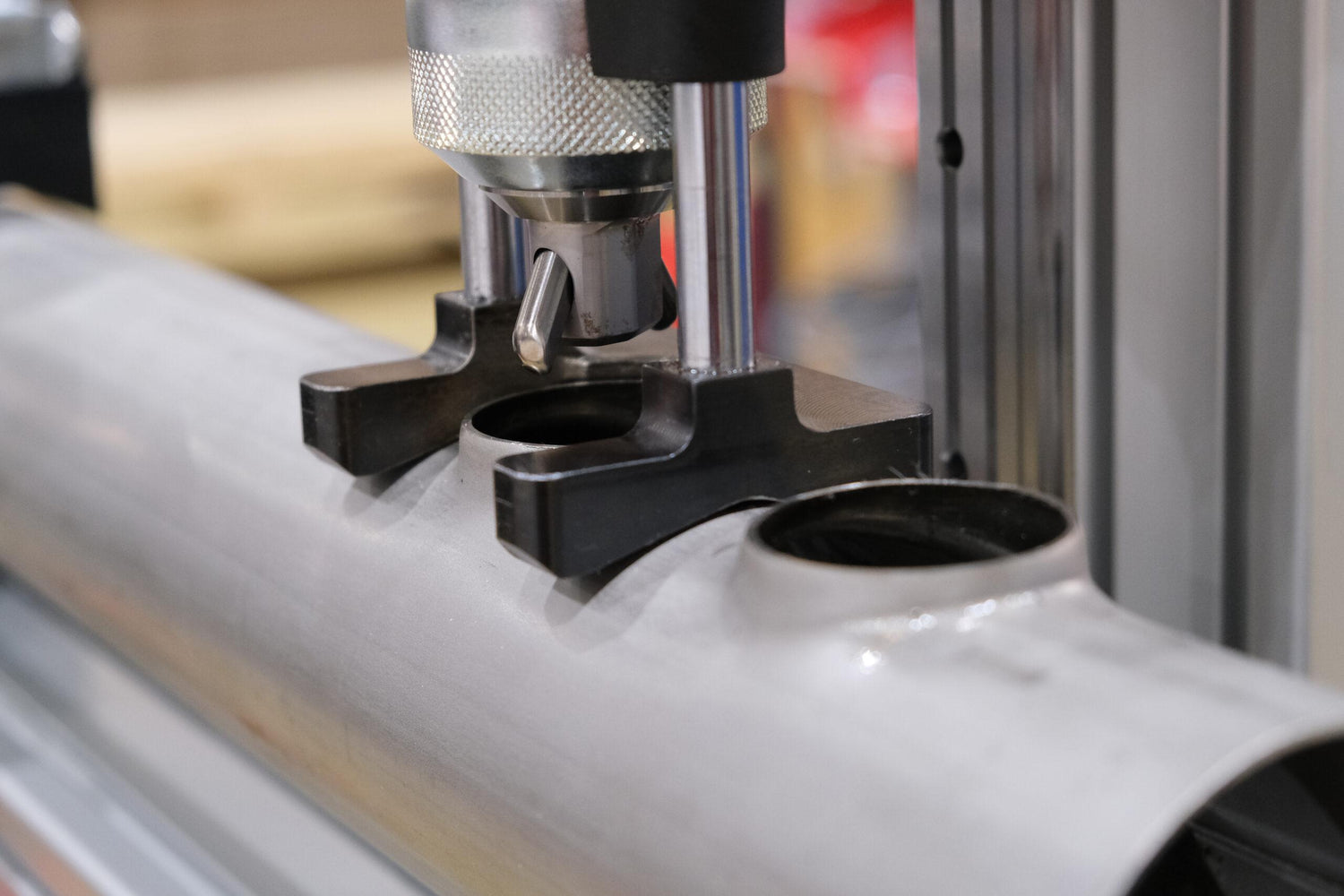

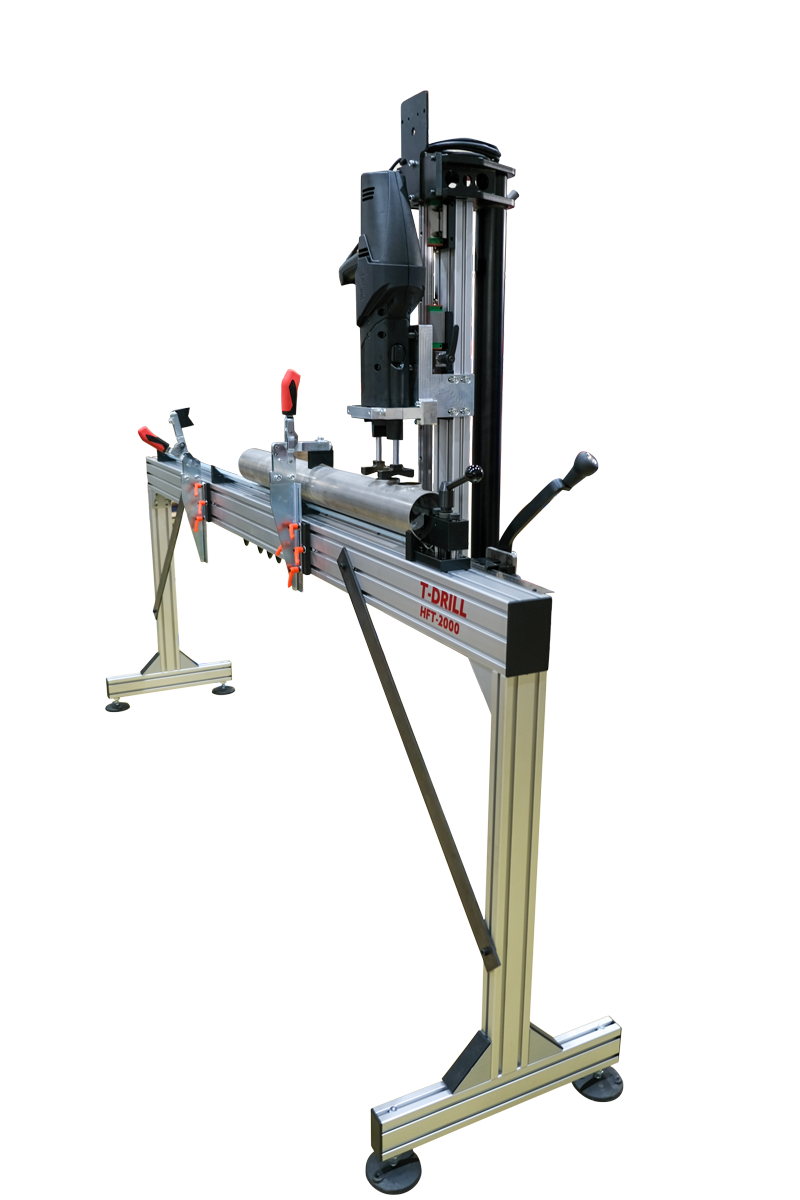

The T-DRILL HFT-2000 SS is a manually operated collaring unit designed for use with the T-54c SST portable collaring machine. It is used for small volume production of stainless steel manifolds.

The hand feed table (HFT) enables the production of 17–54 mm (¾″–2″ O.D.) collars in run tubes from 32–114 mm (1¼″–4″ O.D.).

The unit is manually repositioned after each collar is produced and uses pin-to-hole positioning for collar location.

With the HFT-2000 SS, multiple collars can be produced without moving the tube.

Request a Quote

Features

• Collaring unit for use with T-54c SST portable collaring machine
• Designed for small volume manifold production
• Produces 17–54 mm (¾″–2″ O.D.) collars
• Run tube capacity 32–114 mm (1¼″–4″ O.D.)
• Manual hand feed table operation
• Pin-to-hole positioning for collar location

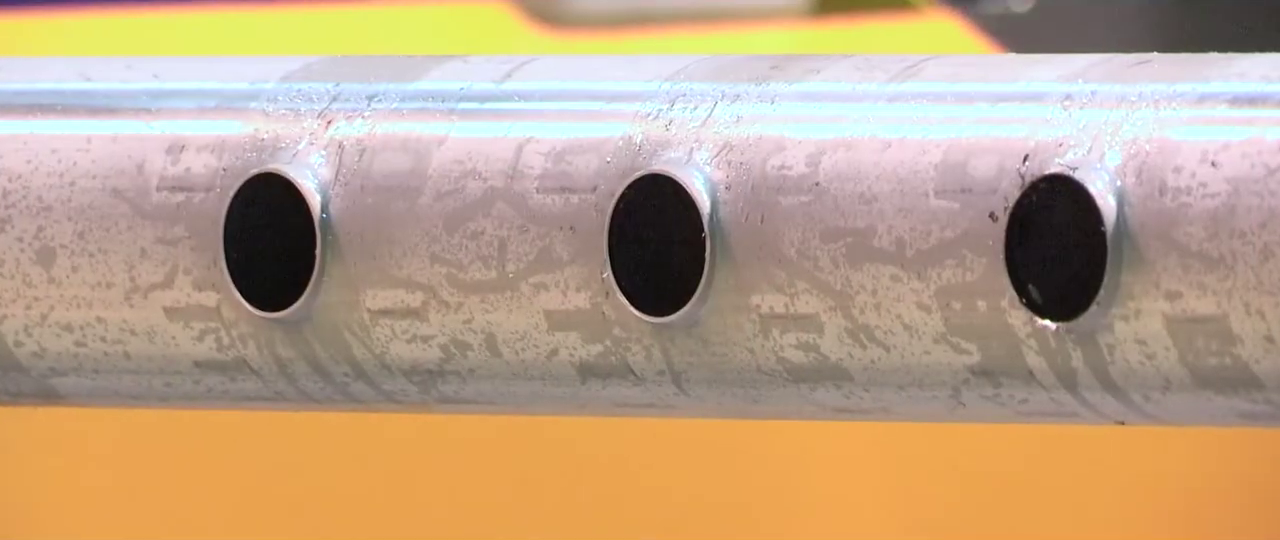

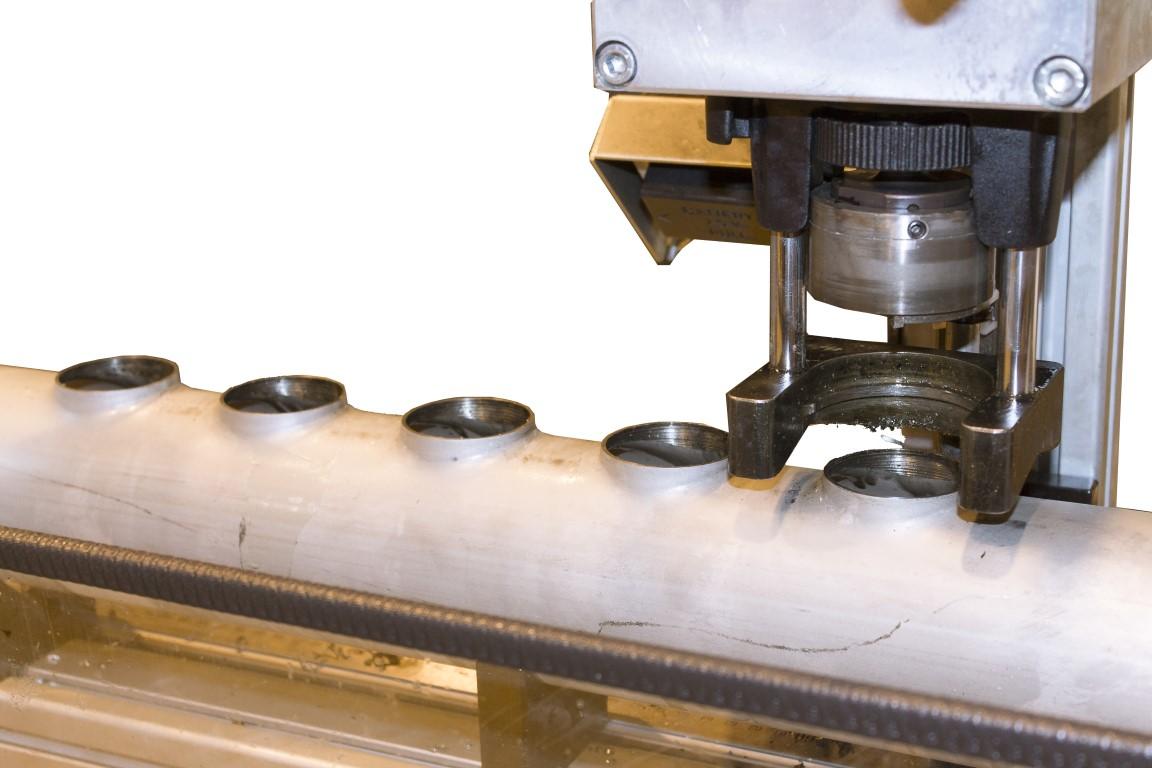

• Multiple collars can be produced without moving the tube


DO IT WITH T-DRILL:

Reduce costs • Improve quality • Increase productivity

• Eliminates the need for T-fittings
• Reduces inventory requirements
• No tube cutting required
• Single welded joint per connection
• Lower inspection requirements
• Flexible tee ratio variation
• Reduced risk of leakage or rework
• Improved flow characteristics
