T-DRILL PLUS 115 SS Collaring System for Stainless Steel

T-DRILL PLUS 115 SS Portable Collaring System - 48–114mm

Portable collaring system for large stainless steel pipe and tube

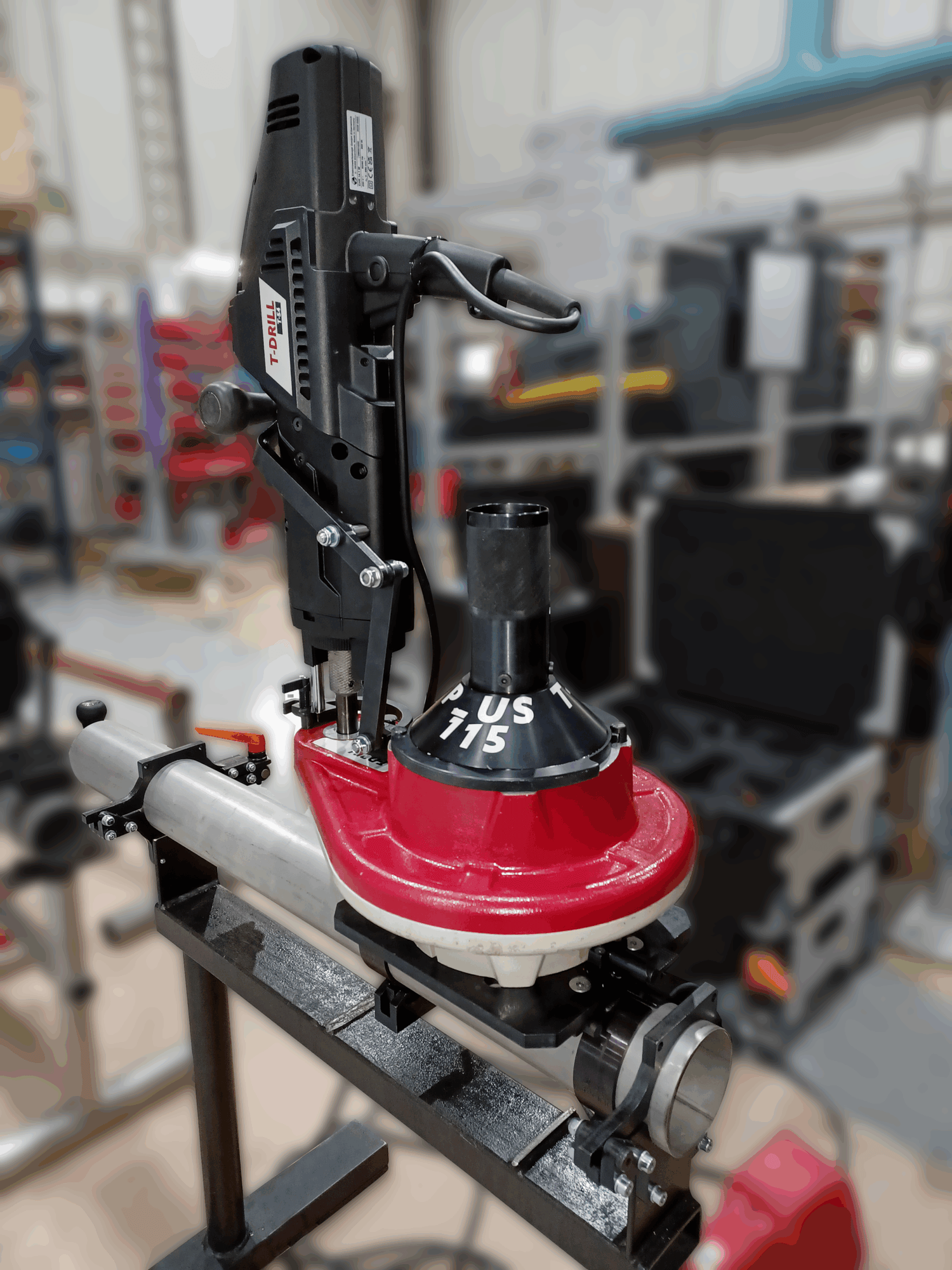

The T-DRILL PLUS 115 SS is a portable collaring system designed as a capacity-expanding attachment for the T-54c SST portable collaring machine. It forms 48.3–114.3 mm (2″–4″ O.D.) outlets for butt welded joints on stainless steel and steel pipes.

The collaring process consists of pilot hole milling, collaring and finishing. By eliminating two welded joints, the system reduces installation requirements while maintaining joint quality comparable to mechanically formed tee connections.

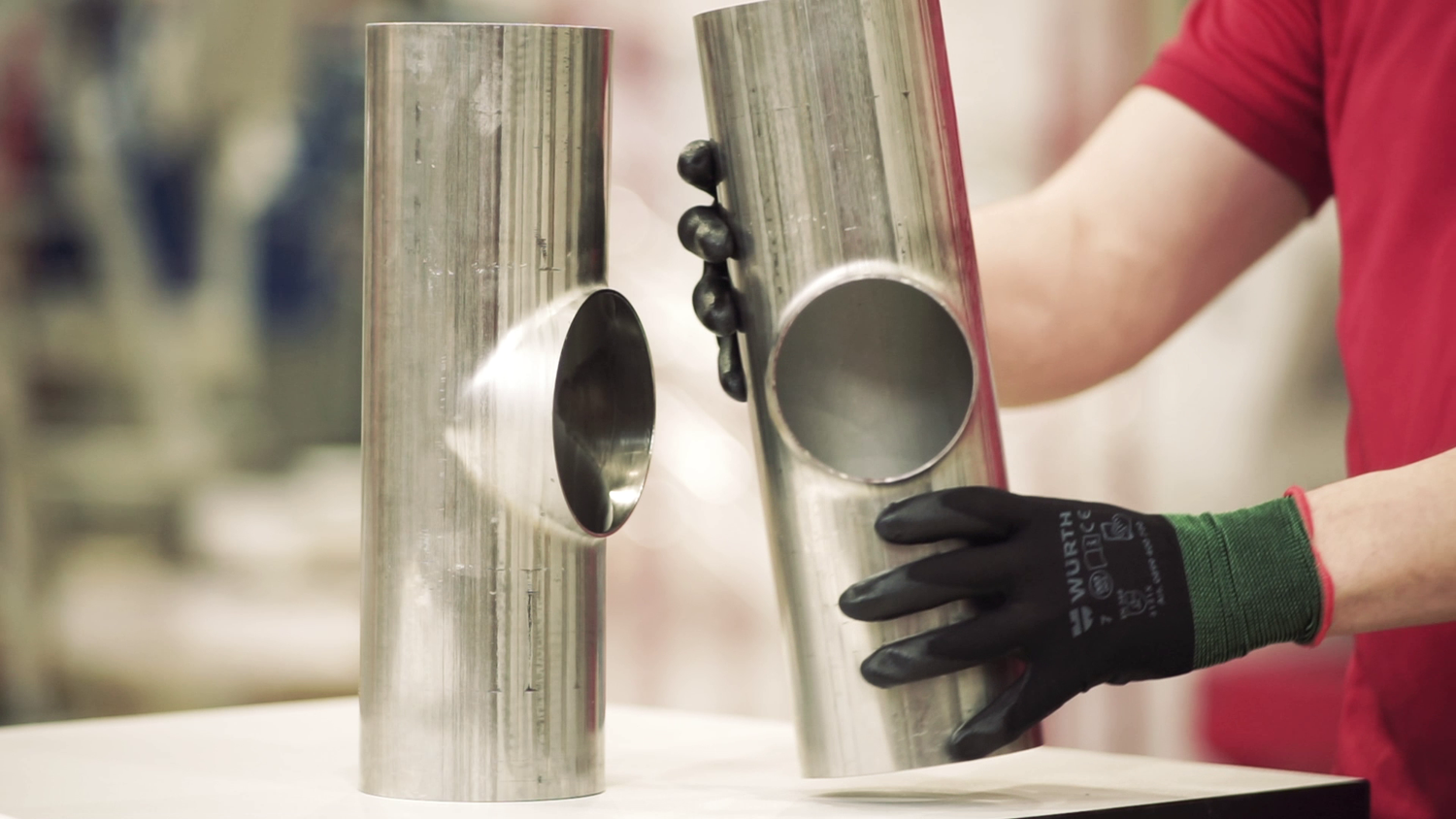

The formed outlet allows connection of the branch pipe by orbital or manual welding. If tube polishing is required at the welding points, the process is reduced.

Heavy-duty T-DRILL collaring heads with stepless adjustment allow precise control of collar size across the 48.3–114.3 mm (2″–4″ O.D.) range.

Request a Quote

Features

• Portable collaring system for stainless steel and steel pipe
• Attachment for T-54c SST portable collaring machine
• Forms 48.3–114.3 mm (2″–4″ O.D.) outlets
• Designed for butt welded branch connections
• Eliminates two welded joints
• Supports orbital and manual welding
• Reduces tube polishing at welding points
• Heavy-duty T-DRILL collaring heads
• Stepless adjustment for precise collar sizing
• Adjustable system for optimal elliptical pilot hole shape


DO IT WITH T-DRILL:

Reduce costs • Improve quality • Increase productivity

• Eliminates the need for T-fittings
• Reduces inventory requirements
• No tube cutting required
• Single welded joint per connection
• Lower inspection requirements
• Flexible tee ratio variation
• Reduced risk of leakage or rework
• Improved flow characteristics
